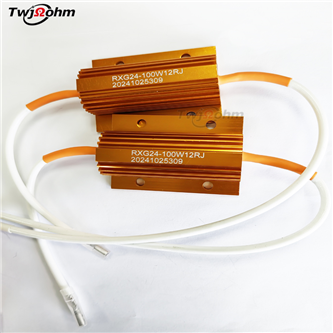

RX24
功率型铝外壳固定电阻器
Power Type Aluminum Shell Fixed Resistor
产品特点Features&Application
1.具有环境保护功能。Molded construction for environmental protection.
2.完全熔焊结构。Complete welded construction.
3.对[敏感词]电抗元件存在无感绕制。Non inductive winding exists for the lowest reactive component
4.安装于基板上应用热吸收效应。Mounts on chassis to Enhance heat dissipation effect.
5.操作中具有良好的可靠性。Excellent stability in operation.
降功耗曲线Power Derating Curve
外形尺寸DlMENSIONS①
|
|
|||||||||||||||
|
型号 Model |
功率 Power |
外形尺寸 Dimensions（mm） |
|||||||||||||
|
A ±1 |
B ±1 |
C ±1 |
D ±1.5 |
E ±0.5 |
F ±0.5 |
G ±0.5 |
H ±0.5 |
J ±0.5 |
K ±0.5 |
L ±0.5 |
M ±0.5 |
N ±0.5 |
P ±2 |
||
|
RX24 |
5W |
11 |
13 |
15 |
32 |
8.5 |
17 |
8 |
1.3 |
4.5 |
2 |
2.4 |
0.7 |
27.5 |
|
|
10W |
13 |
15 |
20 |
42 |
10.5 |
23 |
10.5 |
1.7 |
5 |
3.5 |
3 |
1.6 |
1.3 |
10.5 |
|
|
25W |
18.5 |
20 |
27 |
52 |
15 |
29 |
15 |
2 |
7 |
4.5 |
3.5 |
2.5 |
2 |
12 |
|
|
50W |
40 |
22 |
50 |
74.5 |
15 |
29 |
15.5 |
2 |
7 |
5 |
3.5 |
3.5 |
2 |
12 |
|
